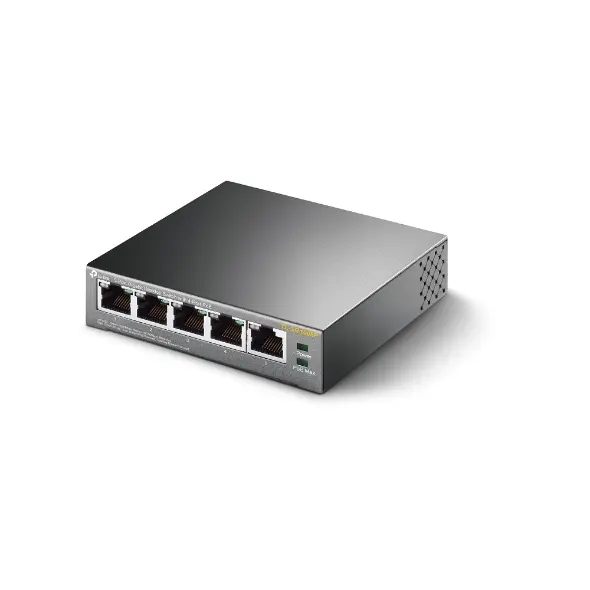

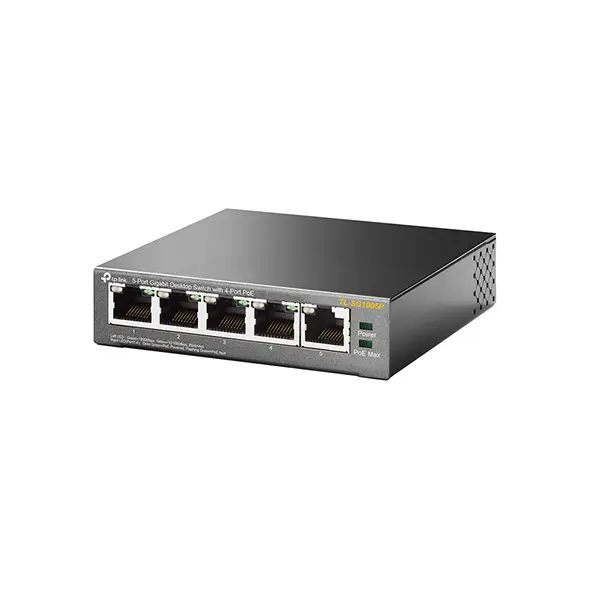

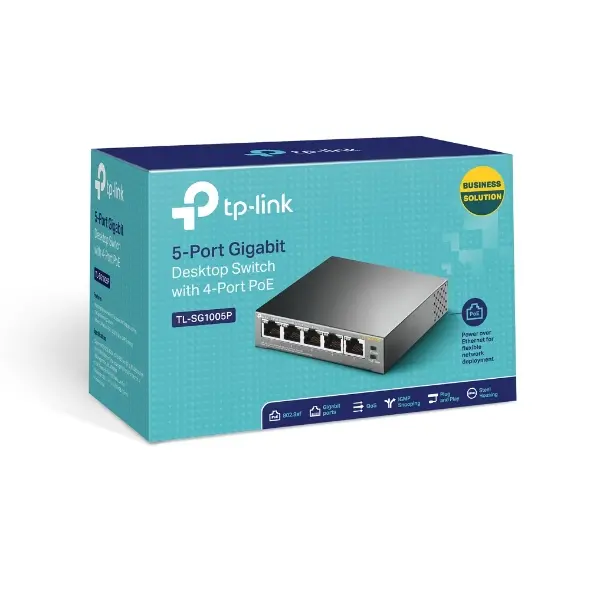

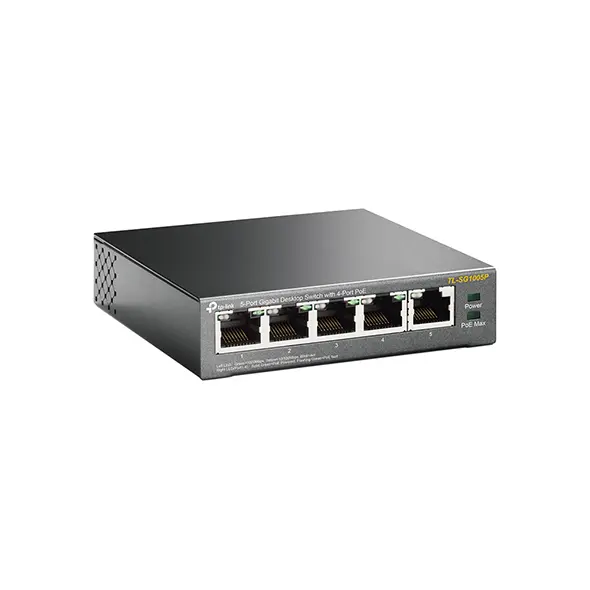

TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE (56W PoE Budget)

https://maxcoax-multimedia-integrators-bv.odoo.com/web/image/product.template/6745/image_1920?unique=a0f7f71
  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • Requires no configuration and installation
Functionaliteit van de Hardware
Interface5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Netwerkmedia10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Ventilator AantalFanless
Externe VoedingExternal Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandbreedte10Gbps
Adressentabel MAC2K
Afmetingen ( B x D x H )3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max. Power Consumption3.95W(220/50Hz. no PD connected)
64.44W(220/50Hz. with 56W PD connected)
Max Heat Dissipation13.48BTU/h(no PD connected)
219.87BTU/h(with 56W PD connected)
Functionaliteit van de Software
Geavanceerde FunctiesCompatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmissie MethodeStore-And-Forward
Overige
CertificatieFCC, CE, RoHS
PakketinhoudTL-SG1005P, Power Adapter, Installation Guide
OmgevingOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

43,63 € 43.63 EUR 43,63 € Exclusief btw

43,63 € Exclusief btw

Log in om prijzen te zien
