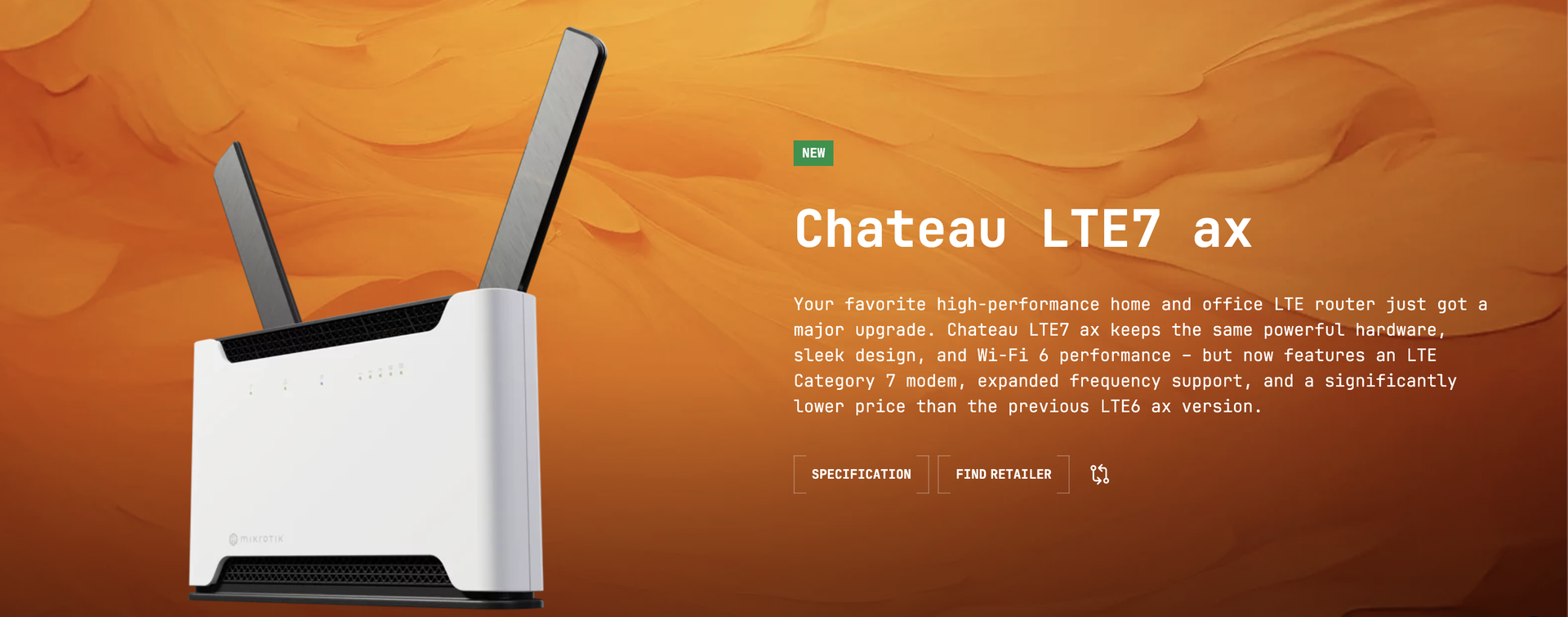

MikroTik Chateau LTE7 ax

Specification

• Product codeS53UG+5HaxD2HaxD-TC&R11e-LTE7
• Suggested price$169.00
• ArchitectureARM 64bit
• CPUIPQ-6010
• CPU core count4
• CPU nominal frequencyauto MHz
• CPU Threads count4
• Switch chip modelIPQ-6010
• RouterOS license4
• Operating SystemRouterOS v7
• Size of RAM1 GB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

• Number of DC inputs1 (DC jack)
• DC jack input Voltage12-28 V
• Max power consumption21.5 W
• Max power consumption without attachments15.5 W
• Cooling typePassive

• 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands1 (2100 MHz)
  5 (850 MHz)
  8 (900 MHz)
  3 (1800 MHz)

• LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL2x2
• MIMO UL1x1
• LTE FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
  32 (1500 MHz)

• LTE TDD bands38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)

• TAC35312597

• Wireless 2.4 GHz Max data rate574 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz3
• Wireless 2.4 GHz chip modelQCN-5022
• Wireless 2.4 GHz generationWi-Fi 6
• Wireless 5 GHz Max data rate1200 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz6
• Wireless 5 GHz chip modelQCN-5052
• Wireless 5 GHz generationWi-Fi 6

• 10/100/1000 Ethernet ports4
• Number of 2.5G Ethernet ports1

• Number of SIM slots1 Modem (Micro SIM)
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB type A
• Max USB current (A)1

• CPU temperature monitorYes
• PCB temperature monitorYes
• Voltage MonitorYes
• Mode buttonYes

• CertificationCE, EAC, ROHS
• IP20

24V 1.2A power adapter

UTP Flat Cable (1.5m)
