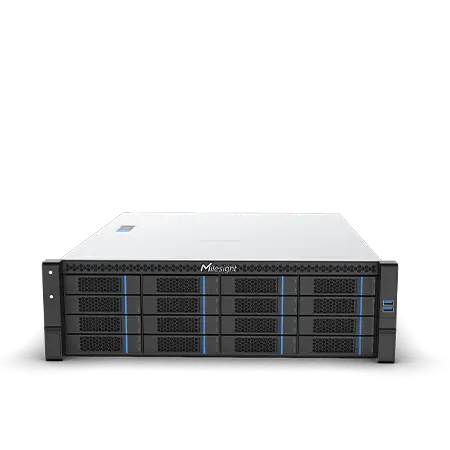

Milesight VE1608-A VMS Enterprise Storage Server with 128-CH License, 16 Disk Slots (20TB max)
VMS Enterprise Storage Server with 128-CH License,
16 Disk Slots (20TB max).
* Support up to 128 video streams per server;
* Provide cost-effective storage: up to 12*20TB storage capacity;
* RAID 0/1/5/6/10/50/60 enables multiple data security protection;
* Designed with a separate and redundant array of Solid State Drives for the operating system , with a built-in recovery partition to simplify the recovery process;
* Pre-configured latest Milesight VMS Enterprise software;
* Windows-based operating system;
* A whole array of ports provides all necessary features of effective surveillance;
* 3-year, on-site, next business day, keep your appliance warranty;
* Integrate with Milesight network camera, sensors and 3rd party network cameras;
* Intelligent adjustment of the operating rate, ensures more efficient heat dissipation.
Specifications
- VE1608-A
| Devices | |
|---|---|
| Included Camera Access License | 128 |
| Recording | |
| Recording Schedule | 128 |
| Bandwidth | |
| Incoming Bandwidth | 1920Mbps |
| Outgoing Bandwidth | 1920Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability | 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | Intel Core 12th i7 |
| Memory | 2*8GB DDR4 |
| Network Interface | 2*1000Mbps RJ-45 ports 1*2.5Gbps RJ-45 ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 16*SATA (3.5" or 2.5") Support hot-plug |
| SSD Drive (Operating System) | 2*M.2 SSD(1*250GB Pre-installed) |
| RAM | 4* DDR4 Slot(2*8GB Pre-installed) Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| RAID | Support RAID 0, 1, 5, 6, 10, 50, 60 |
| LAN | 1*2.5Gbps, 2*1000Mbps |
| Display | 2*HDMI Port, 1*DP Port Support independent and synchronous display |
| Audio | 1* BNC In, 1*BNC Out |
| USB Interface | Front panel: 2*USB 3.0; Rear panel: 4*USB 2.0, 2*USB 3.2 Gen2 |
| Power Supply | AC 100-240V, 50-60Hz, redundant power supply |
| General | |
| Chassis | 3U |
| Consumption | ≦75W(without HDD) |
| Working Temperature | 0°C to +50°C (32°F to 122°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Weight | 17kg(without rail)/19kg(with rail ) |
| Dimensions | 480X675X133.5mm |
| Warranty | 3 Years |
