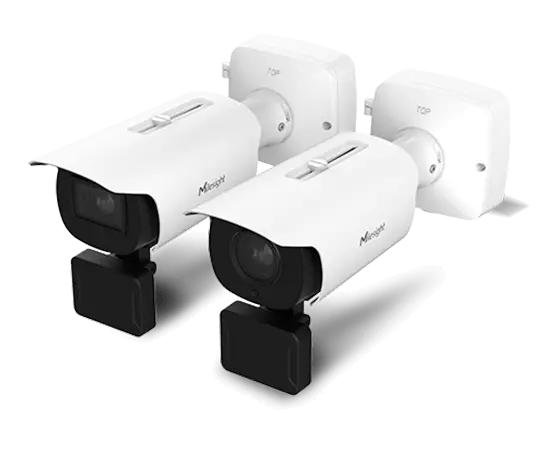

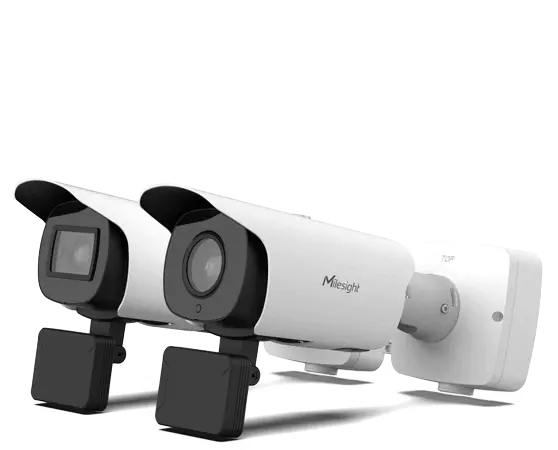

MS-TS4466-RFIVPG1 LPR Camera, 4Megapixel H.265, 2.8~12mm@F1.2, RADAR PoE+ Mini Bullet Network Camera, 0.001Lux@F1.2, 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
| Camera | |
| Name | TS4466-RFIVPG1 |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2 B/W: 0Lux with IR on |
| WDR | Support |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |

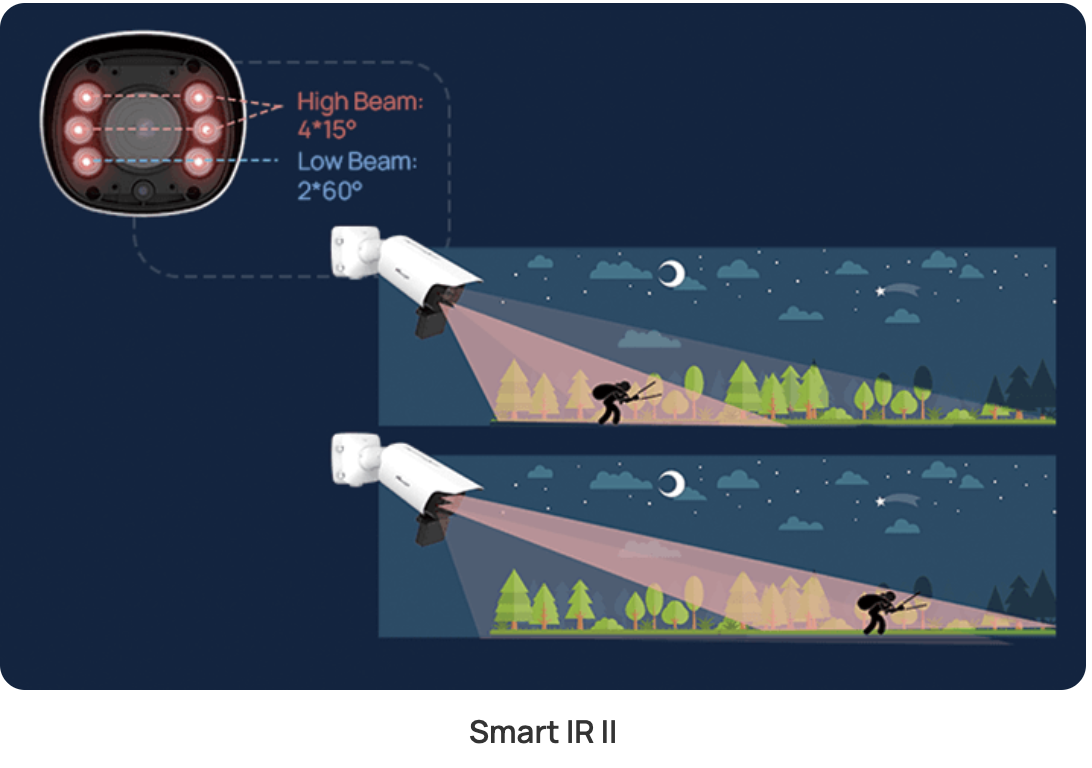

| IR Wave Length | 850nm |
| Illumination Distance | Up to 30m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.8~12mm@F1.2 |
| Field of View | H114°~H45°/ D116°~D51°/ V57°~V25° |
| Mount | Φ14 |
| P-Iris | Support |
| Iris Control | Auto |

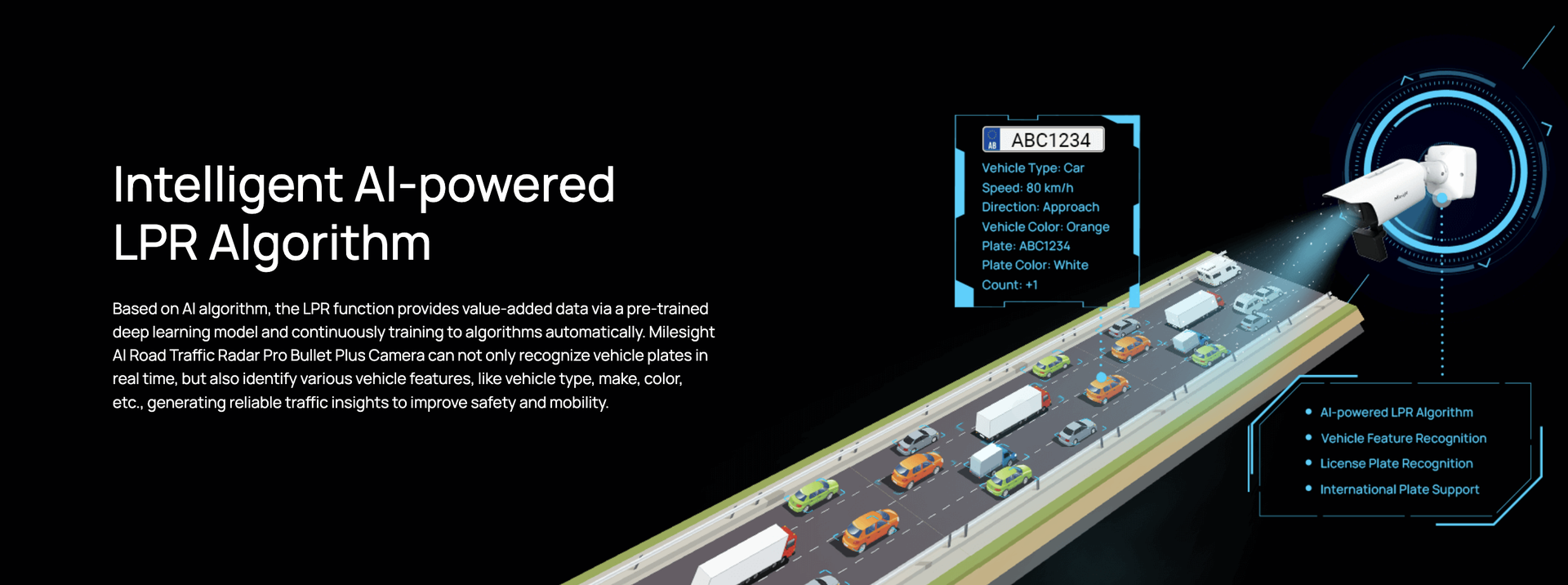

| Road Traffic Management | |
| Max. Vehicle Speed | 160km/h |
| Capture Rate | 0.99 |
| Recognition Accuracy | 0.98 |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 20m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |

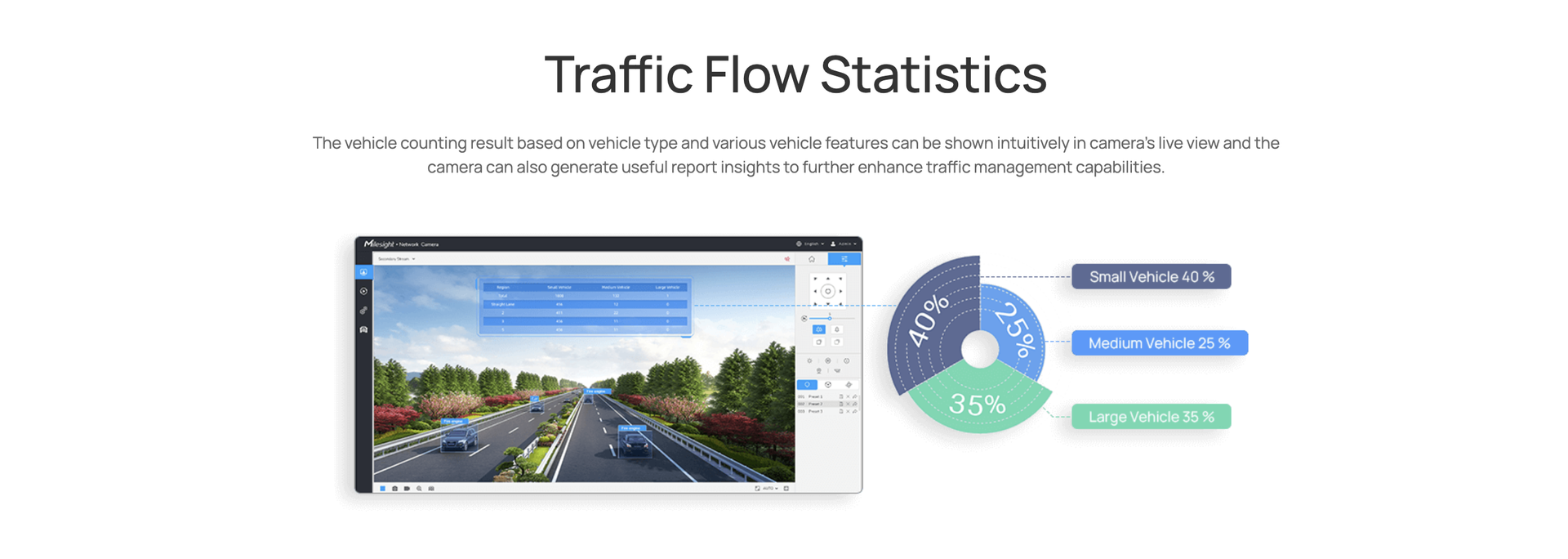

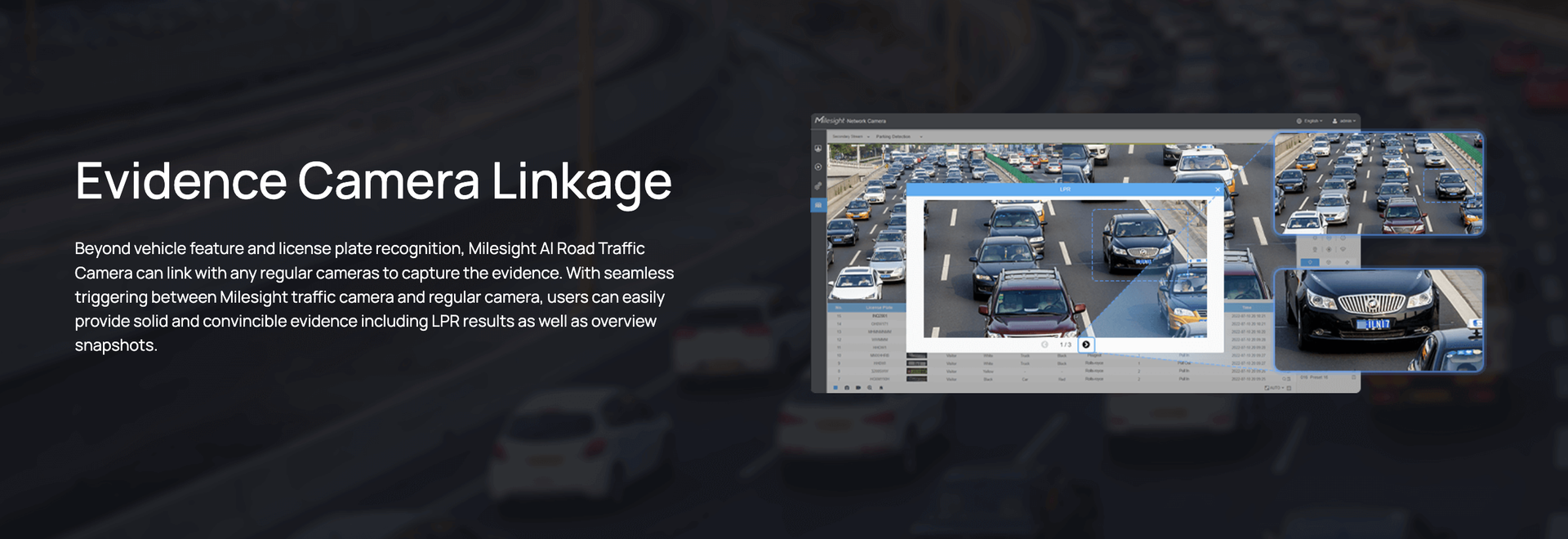

| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |

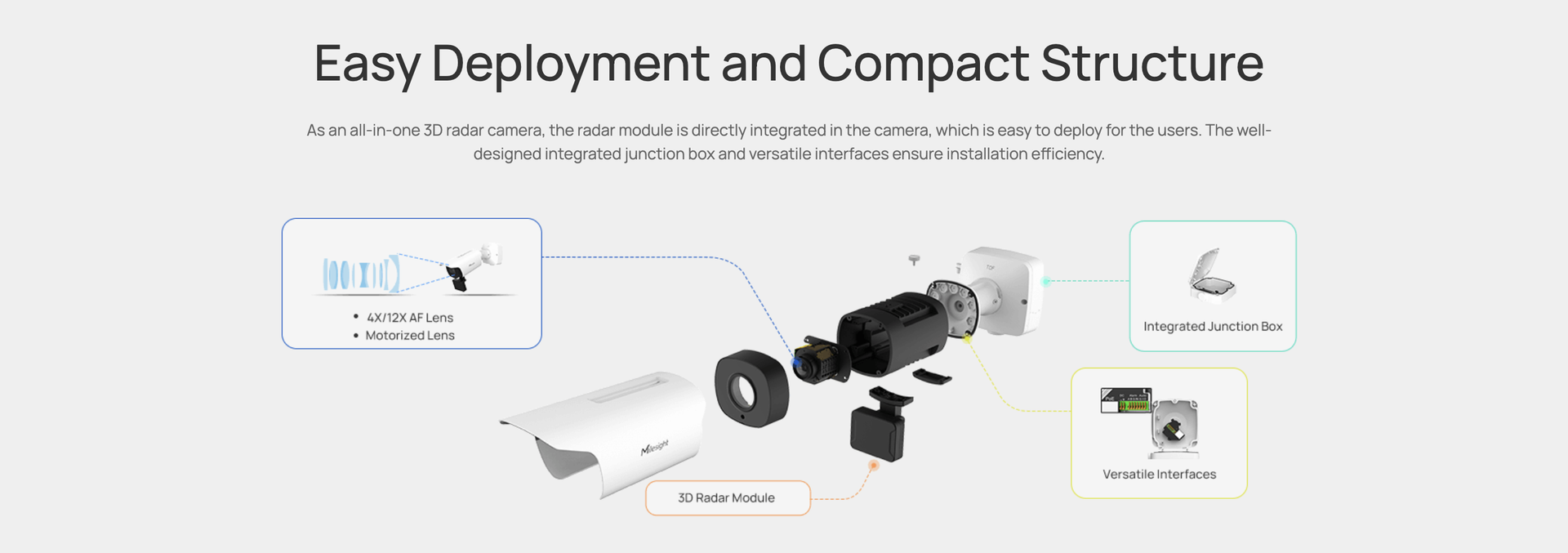

| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | >99% (Traffic jam >95%) |
| Lane Coverage | 1~2 Lanes (Recognition ≥95% individually） |
| Tracking Target | Up to 32 |
| Speed Detection Range | 5km/h~160km/h |
| Speed Detection Accuracy | ±2km/h |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |
| RS485 | 1 |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |

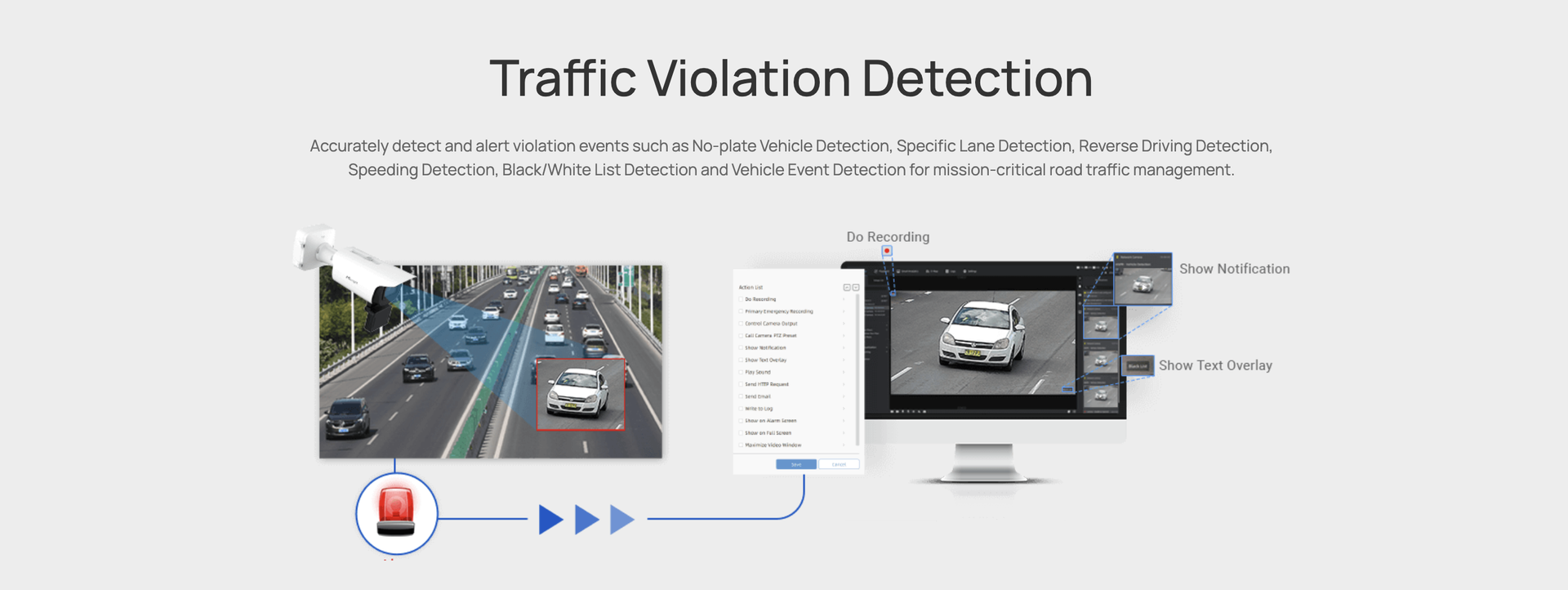

| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | Min.: 6.6W (DC 12V), 7.9W(PoE) Max.: 17.2W (DC 12V), 20.4W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Surge Protection | 4KV |
| Weight | 2300g |
| Dimensions | 346mmX134mmX181mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020)) |
| Safety | CE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series
