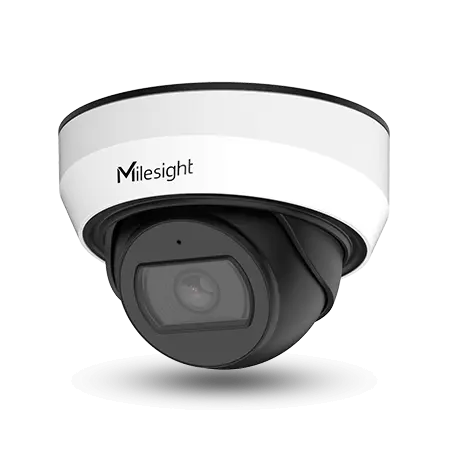

MS-C8175-PD 2,8mm NDAA Ai-VCA 8M HD Wheather-proof Mini vandal Dome Network Camera

https://maxcoax-multimedia-integrators-bv.odoo.com/web/image/product.template/4055/image_1920?unique=aaf617e

MS-C8175-PD NDAA Ai-VCA 8M HD Wheather-proof Mini vandal Dome Network Camera,H.265+, Smart IR 25m, IP67, IK10, H110°/D128°/V61° 2.8mm, 0.005Lux @F1.6, 20fps(2592×1944), Super WDR 120dB










Camera
Name4K AI Weather-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux @F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
MountM12
Field of ViewH110°/D126°/V60°(2.8mm)
H91°/D106°/V50°(4mm)
H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 25m
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption4.6W MAX, 6.6W MAX (With IR on)
HousingVandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight600g(Junction Box Version) / 410g(Cable Out Version)
DimensionsΦ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty3/5 Years

297,14 € 297.14 EUR 297,14 € Exclusief btw

297,14 € Exclusief btw
